Cable Management On Rig¶

As I do not like cable ties to be spread overall, I started to get a clean cable management on the rig itself. For this reason I started to print cable channels, which are attached to the dovetails. The advantage is if you need to remove a wire you just could do it without any tools.

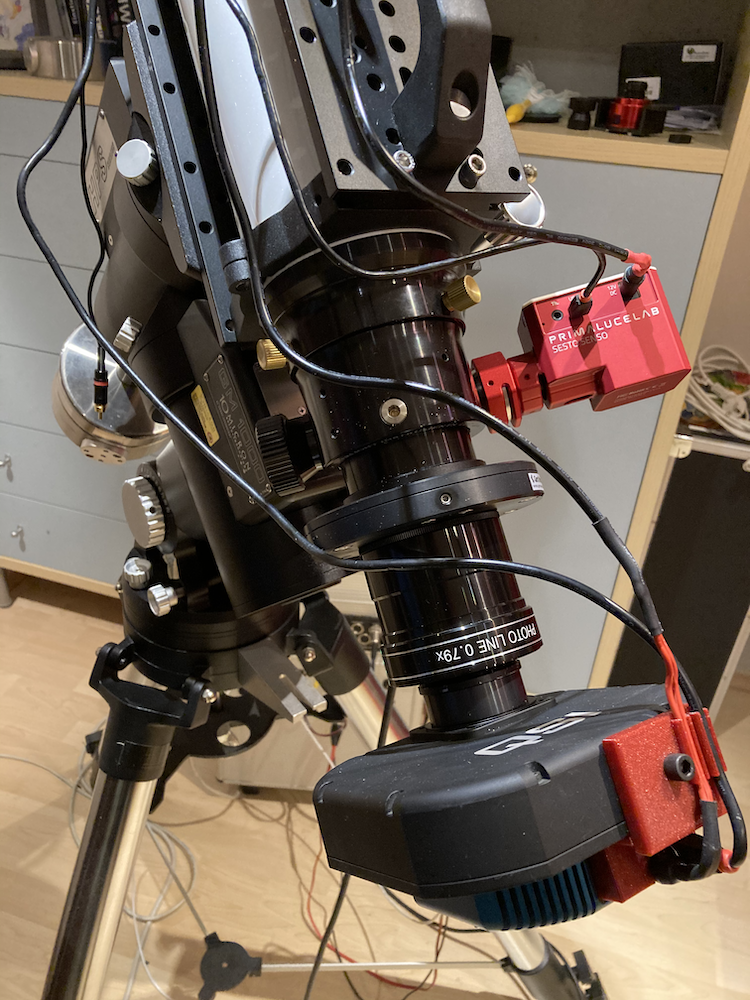

So I started removing all the cable ties from my rig. PartI.

../../_images/img_9575.png

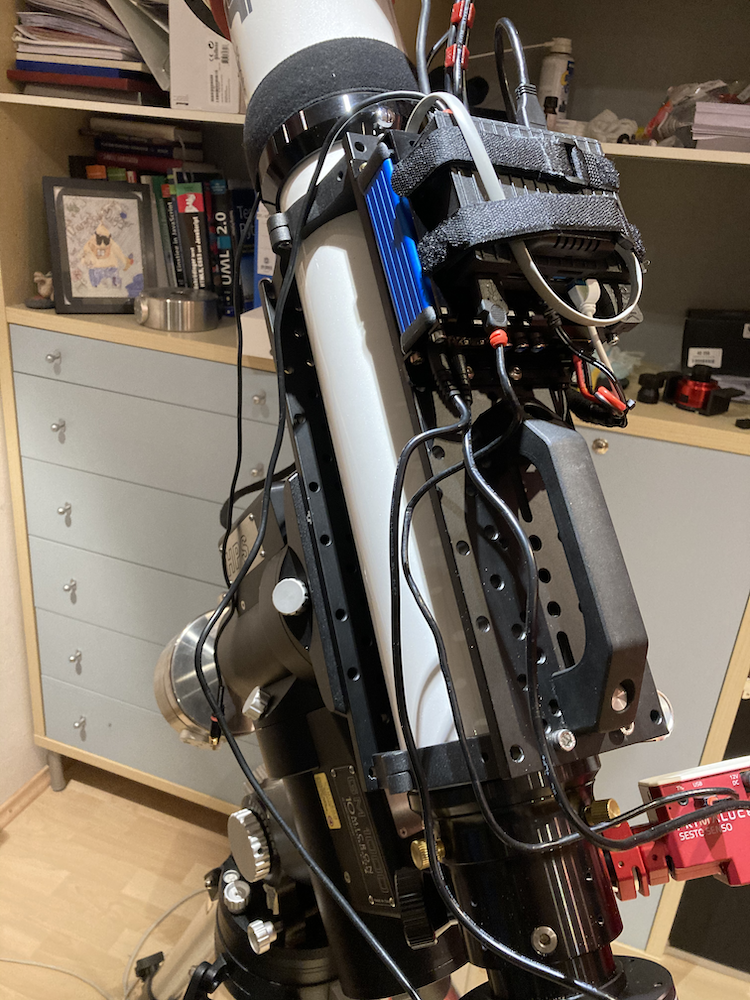

Part II.

../../_images/img_9576.png

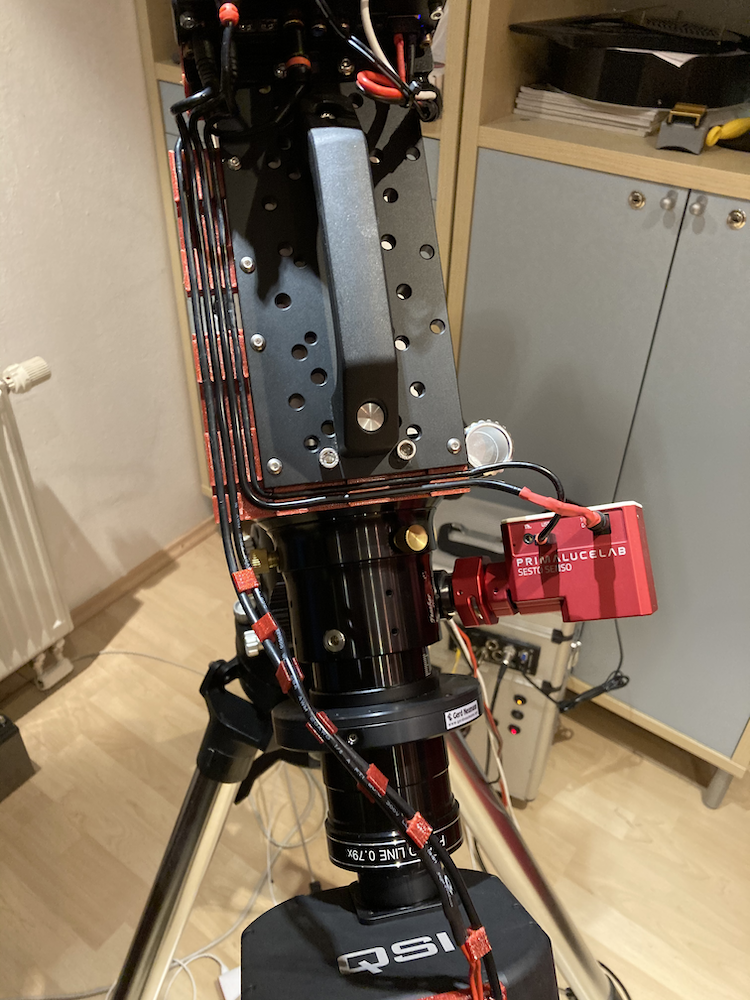

And the printed channels attached to the dovetail.

../../_images/img_9577.png

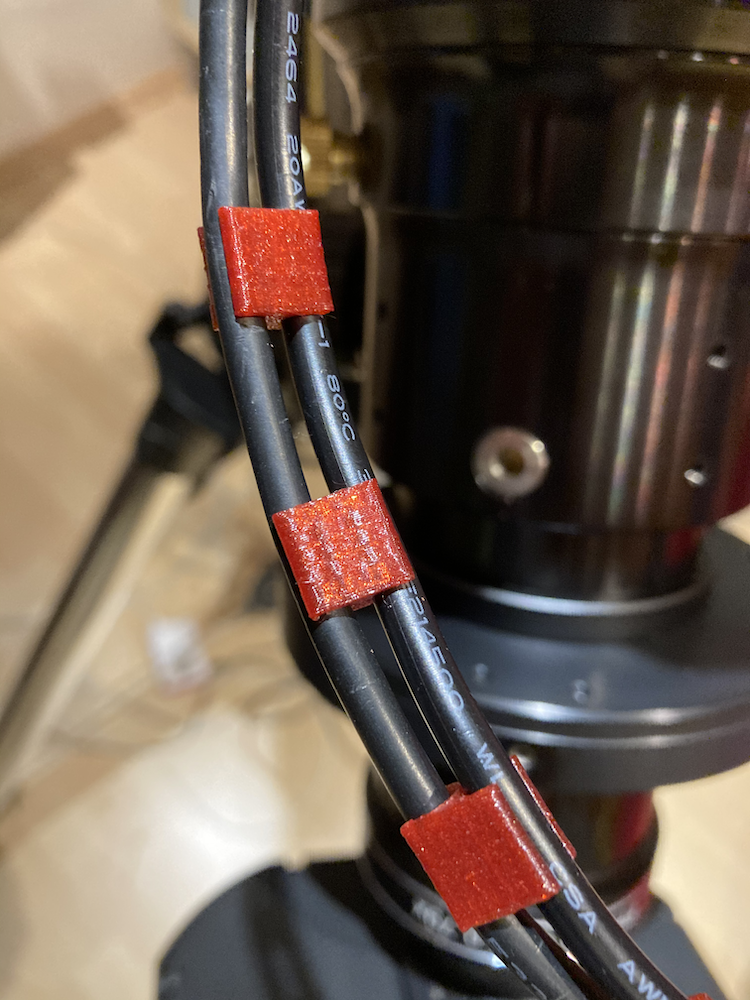

I also did some clips to attach two cable to each other.

../../_images/img_9578.png

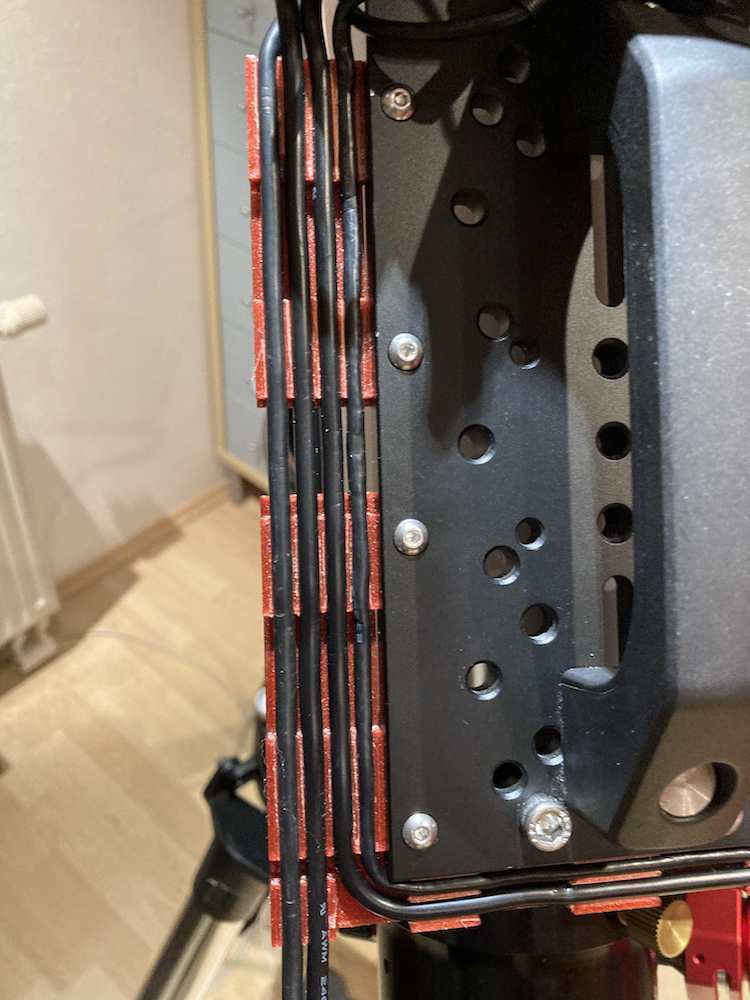

Detailed view on the left side where the connections for focuser and ccd (USB and power) are alinged to each other.

../../_images/img_9579.png

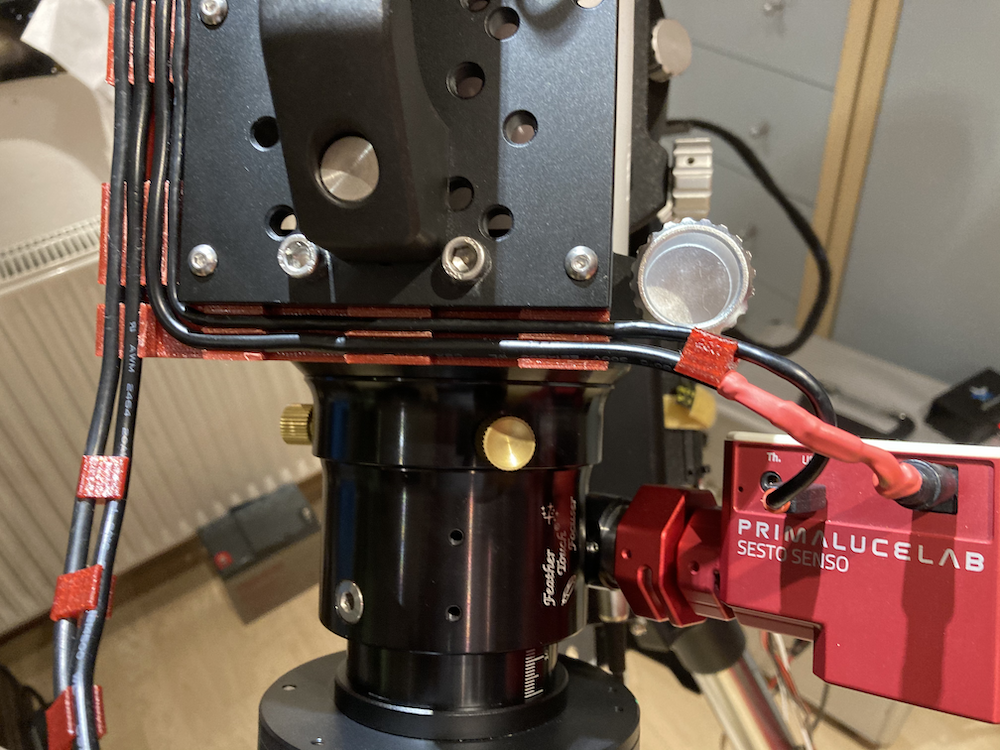

The two lines which direct to the focuser on the right side.

../../_images/img_9580.png

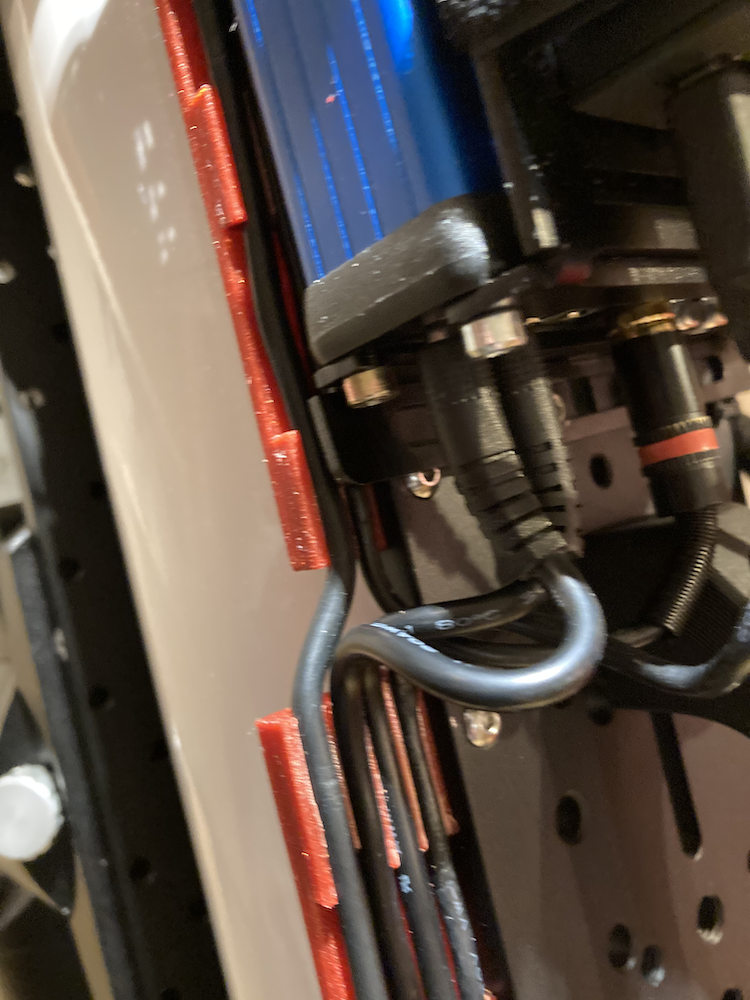

Passing the Pegasus UPB below with Power for Dew and the USB for the camera (which is attache to the front of the Mini PC (USB3). Part I

../../_images/img_9581.png

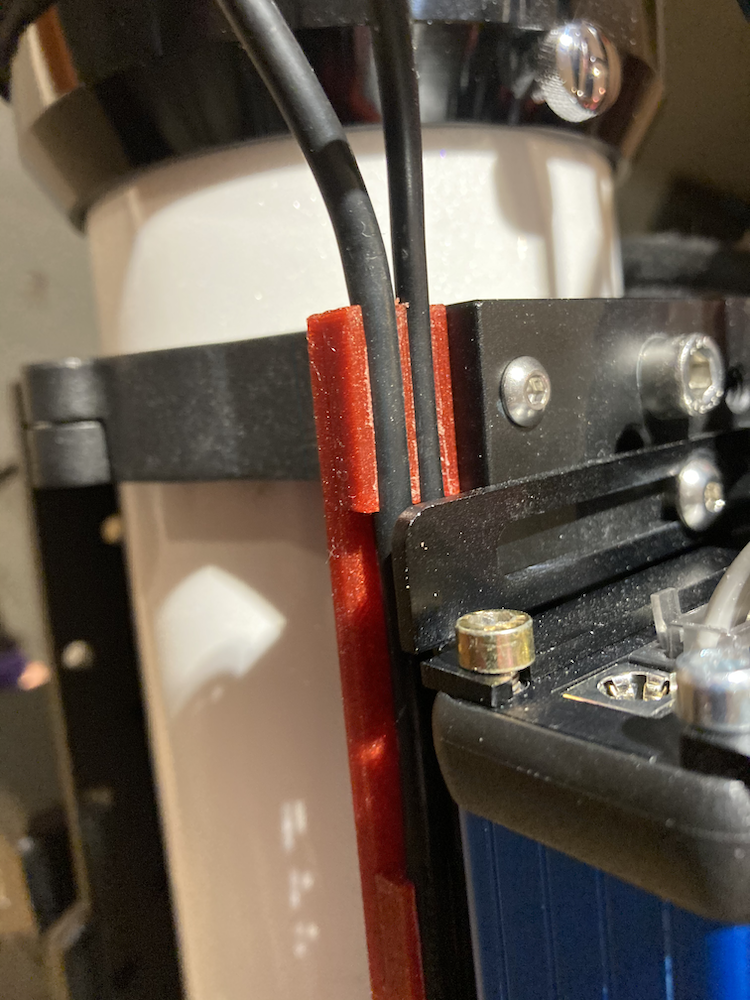

Part II

../../_images/img_9582.png
