Securing power and USB connector

Warning

Before starting please check if this solution also work for your environment. This means please check carefully dimensions and devices. This setup might not work for you.

Warning

Changes on all devices are made at your own risk!

Description of parts for QSI690 connectors

Note

Please use adequate parts if you would like to follow the example. In my setup the wires are used for connecting to PegasusUPBv2.

Two part for the holder and one screw fitting to the thread in the attached filter wheel of the QSI camera

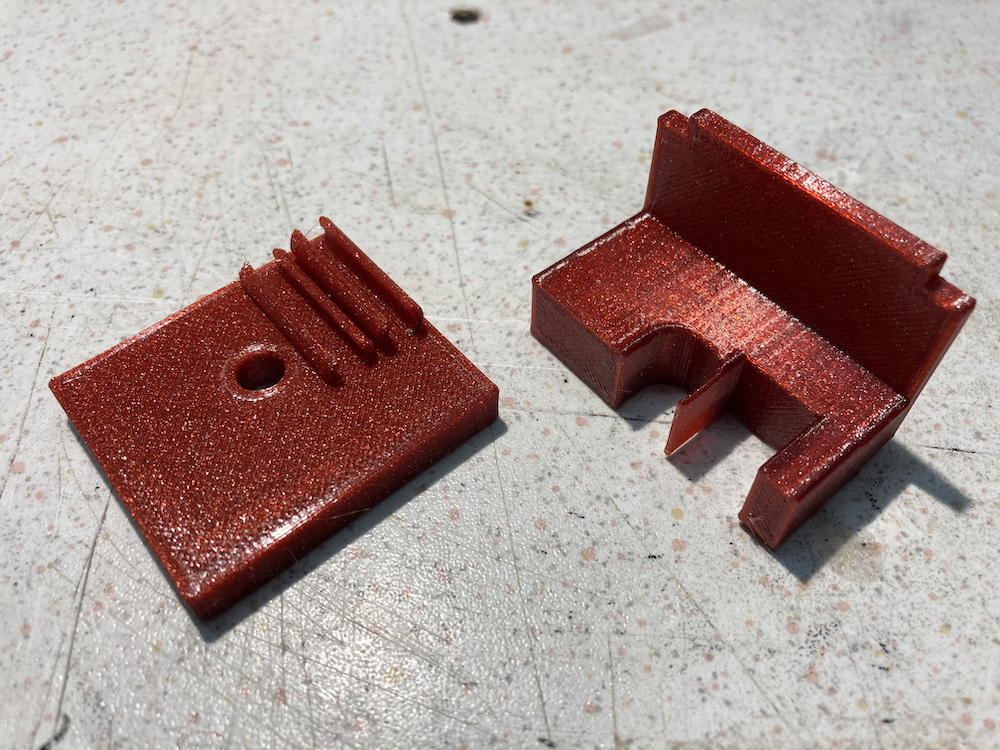

The wo holder parts

../../_images/img_9549.png

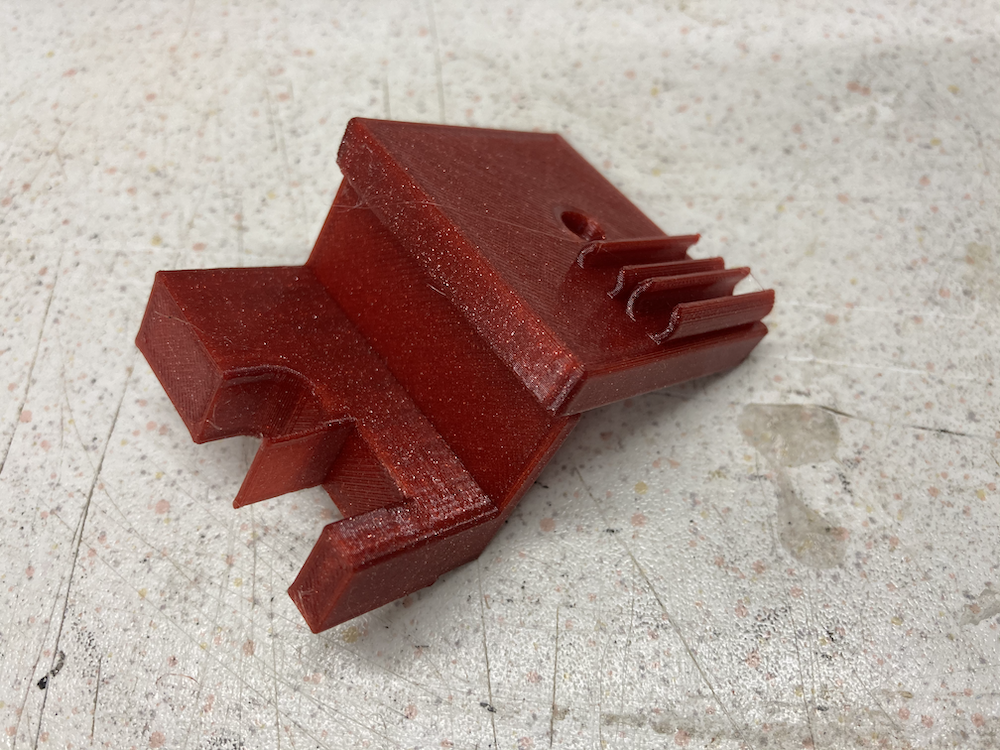

The fit together without any tool needed.

../../_images/img_9550.png

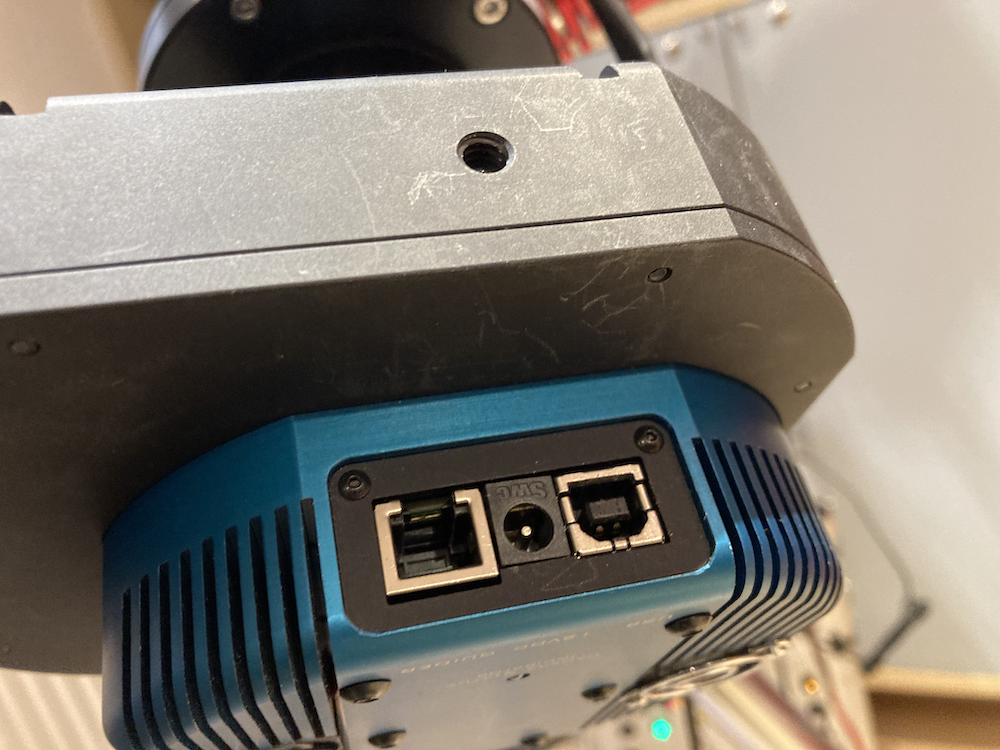

Image of the thread on the QSI690 filter wheel

../../_images/img_9551.png

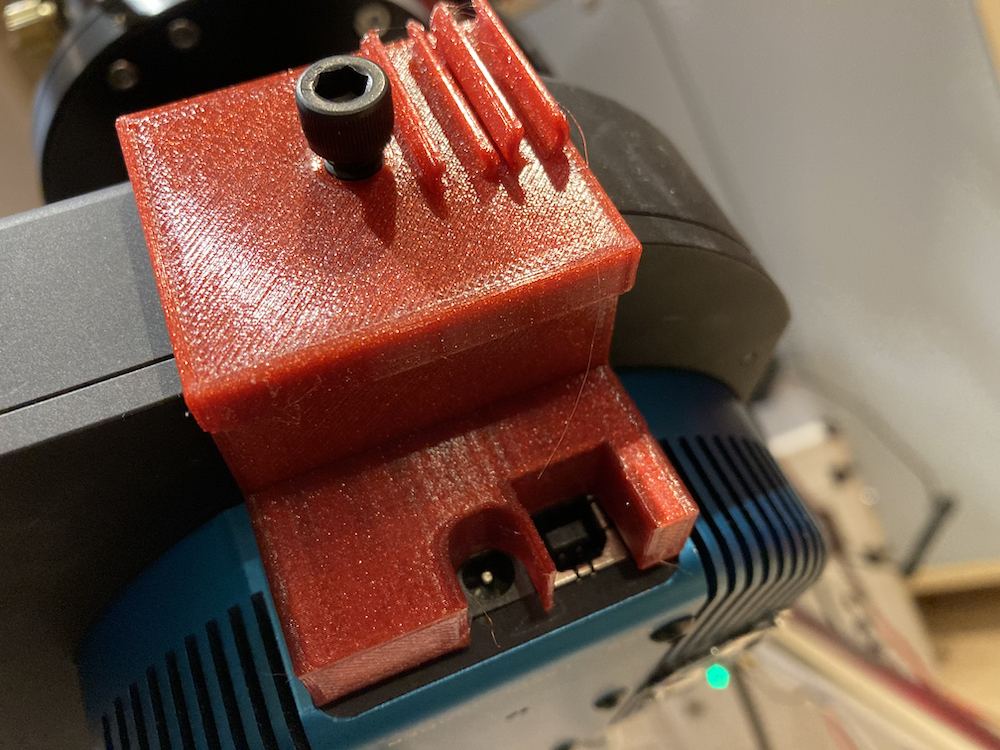

1. Step: attaching the combined holder to the filter wheel

Put the holder in top of the filter wheel and fit the screw

../../_images/img_9552.png

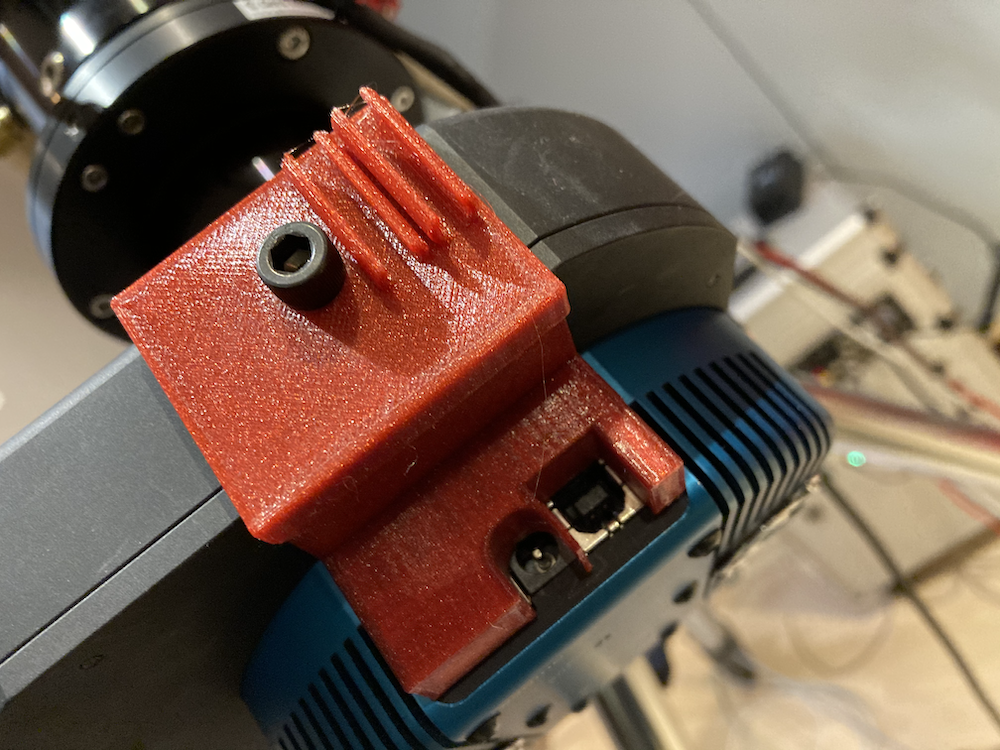

2. Step: tighten the screw and attaching the USB and power connector

../../_images/img_9553.png

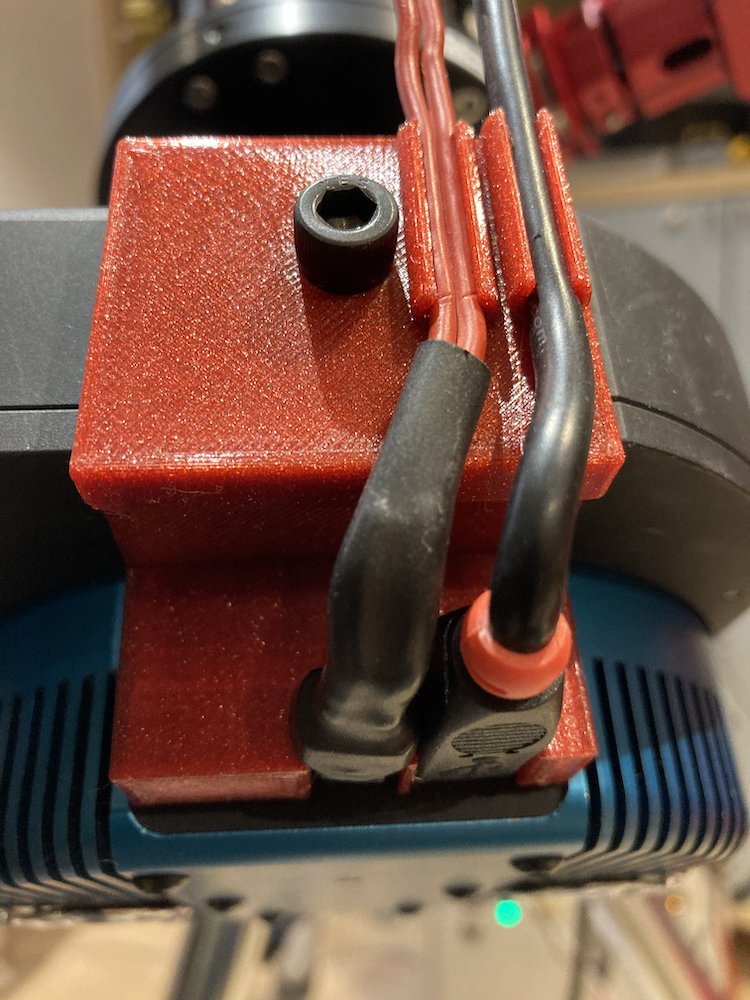

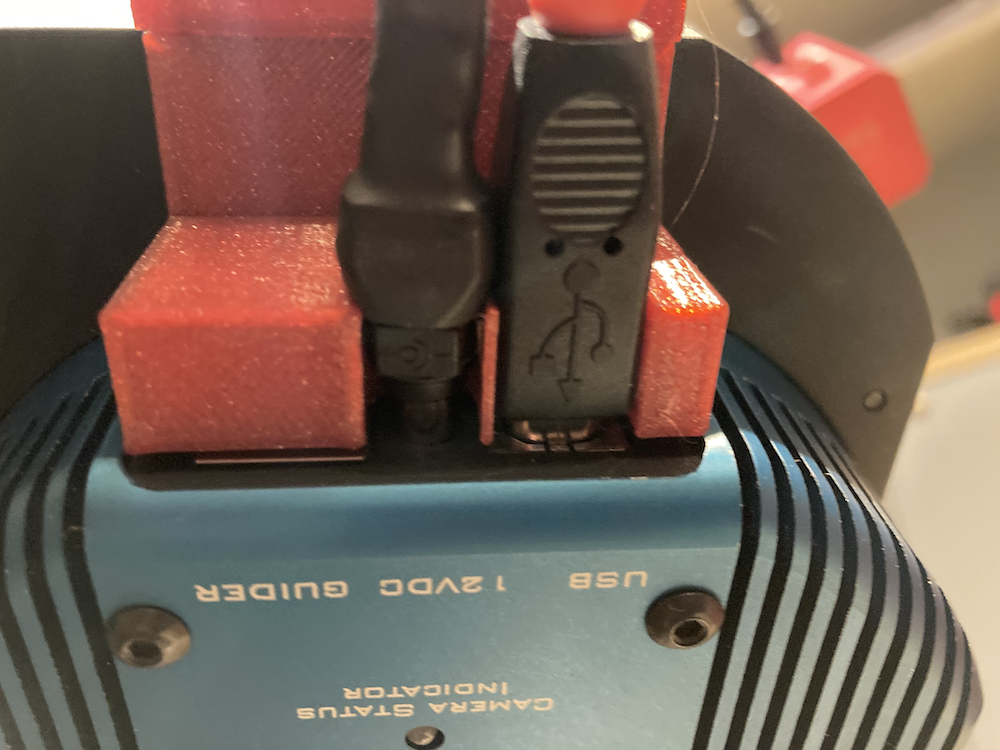

USB and power connector should fit in the designed places tight, but without great force and keep them in the connector.

../../_images/img_9554.png
